Shakespeare  |  SKU: TMS-10599

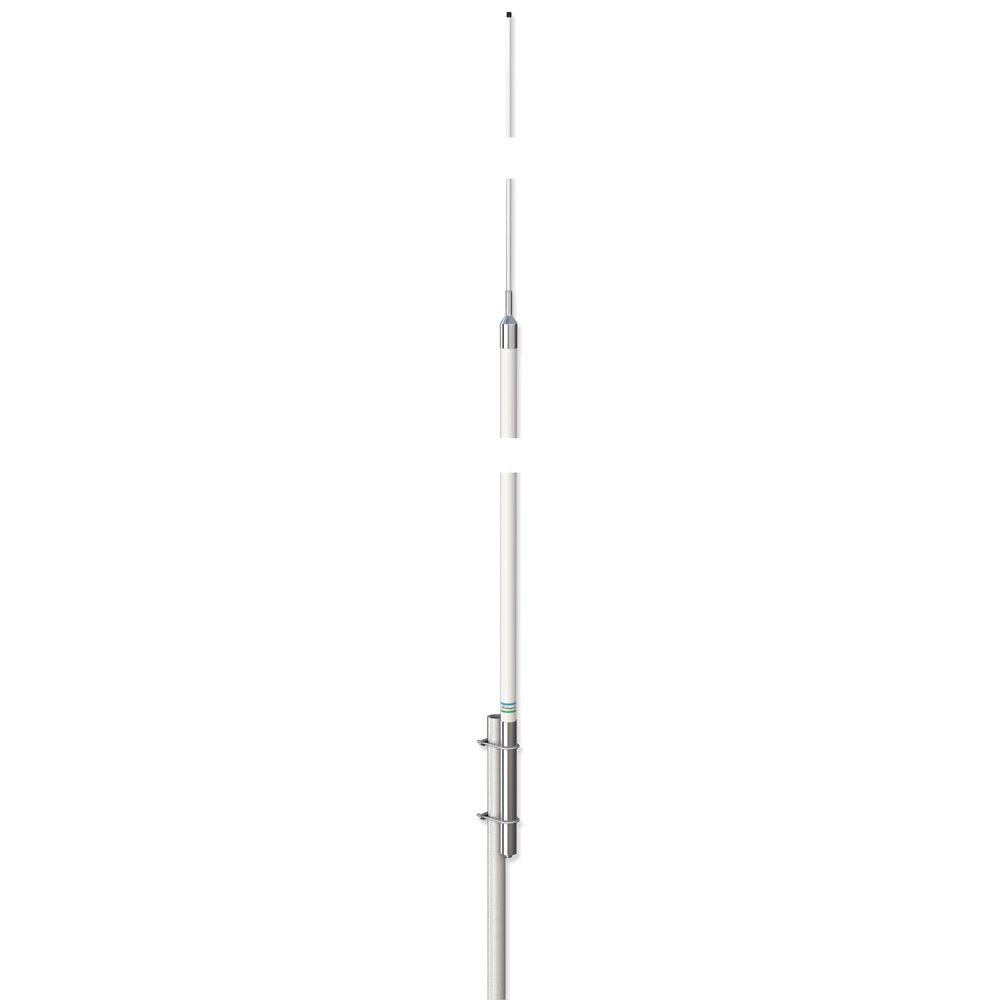

Shakespeare 399-1M 9'6" VHF Antenna [399-1M]

$384.99
Shipping calculated at checkout.


Care information

Please follow the manufacturer’s care recommendations as provided in the product manual.

Delivery and Shipping

All orders placed by 4pm EST will ship the same day as long as everything requested is currently in stock.

Shipping would be either via UPS, Canada Post or USPS.

All orders outside the United States may incur Custom charges of your country.

" Gear up, Dive In, Discover More. "

Style 399-1M VHF 6dB

Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation

The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1"-14 thread
  • Aluminum sleeve for mast mounting
  • Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)
  • Two sections: Base 75"; Tip 39" UPS shippable


Technical Specifications:


Frequency: VHF Marine band
Bandwidth: (within 2.0:1 SWR): 5MHz
SWR: 1.5:1 at 156.8 MHz
Impedance: (ohms): 50
Gain: 6 dB
Max Input (Watts): 100
DC Ground: YES
Termination: SO - 239
Height (feet): 9.5
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Chrome Plated
  • Length (Inches): 114"
  • Box Dimensions: 5"H x 5"W x 88"L WT: 5.2 lbs
  • UPC: 719441100032

Quick Guide (pdf)
