Blue Sea Systems  |  SKU: TMS-20952

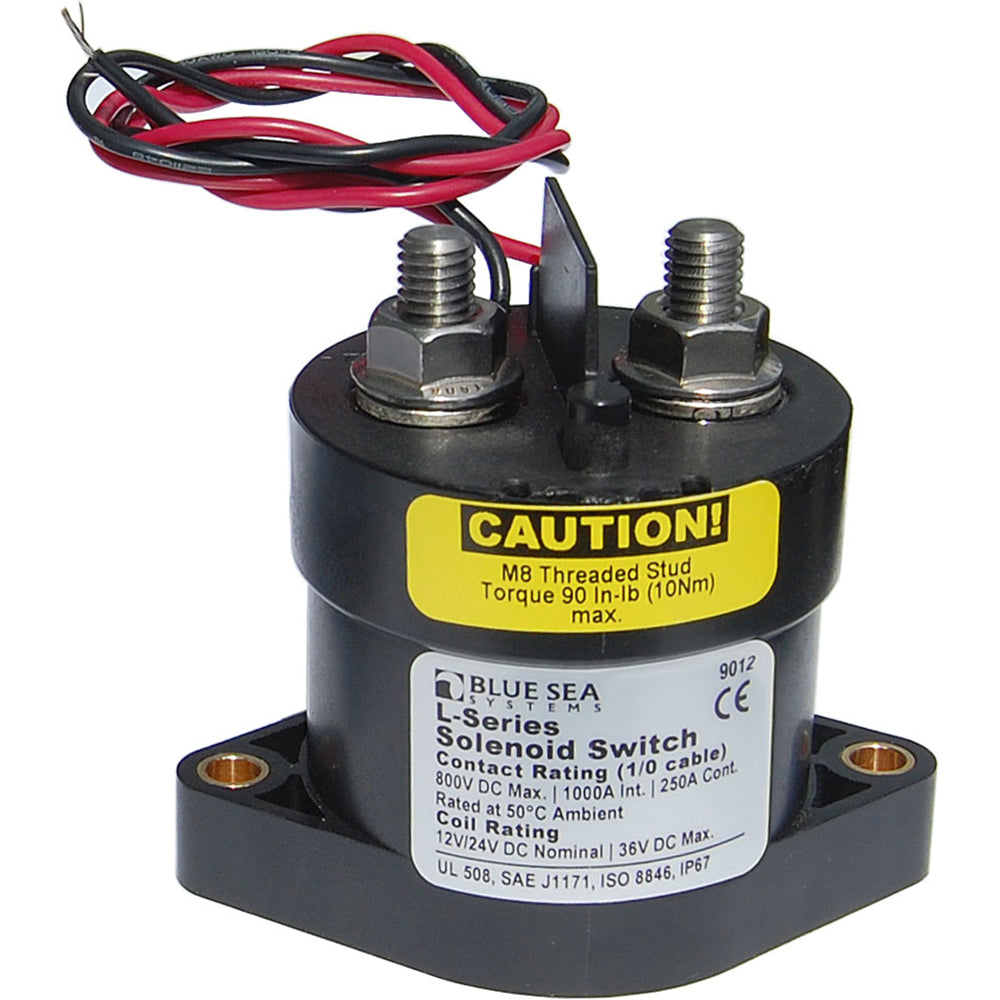

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012]

$287.09 $302.60
Shipping calculated at checkout.


Care information

Please follow the manufacturer’s care recommendations as provided in the product manual.

Delivery and Shipping

All orders placed by 4pm EST will ship the same day as long as everything requested is currently in stock.

Shipping would be either via UPS, Canada Post or USPS.

All orders outside the United States may incur Custom charges of your country.

" Gear up, Dive In, Discover More. "

L Solenoid Switch - 12-24VDC - 250A

Features:

  • Hermetically sealed contacts / vaporproof
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Activated by an ON-OFF switch mounted anywhere
  • Integrated coil control minimizes heating and amperage draw
  • 450 Amp Class
  • Designed for 12 or 24 Volt systems
  • Ignition protected -- safe for installation aboard gasoline-powered boats
  • Activated by a low amperage ON-OFF switch mounted anywhere

Specifications:

  • Control Circuit Connection: 20 AWG Tinned Wire
  • Nominal Voltage: 12V DC / 24V DC
  • Coil Function: Normally Open
  • Mounting: #10
  • Operating Amperage Current: 3.6A when changing state
  • Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
  • Terminal Stud Torque: 90 in-lb (10.17 Nm)
  • Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
  • Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
  • Cranking Rating 30 sec: 1,000A / 1000A DC
  • Contact Form: SPST-NO
  • Input Voltage: 9-36V DC
  • Inrush Rating: 0.25 sec (10 repeats): 2000A
  • Switching Cycles: 1,000,000
  • Terminal Stud: Serrated Flange Nut
  • Terminal Stud Length: 0.66" (16.76mm)
  • Terminal Stud Size: 5/16" (M8)
  • Weight: 1.00lb (0.45 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Continuous Amperage: 450a
  • Box Dimensions: 3"H x 4"W x 7"L WT: 1 lbs
  • UPC: 632085090128

Owner's Manual (pdf)
