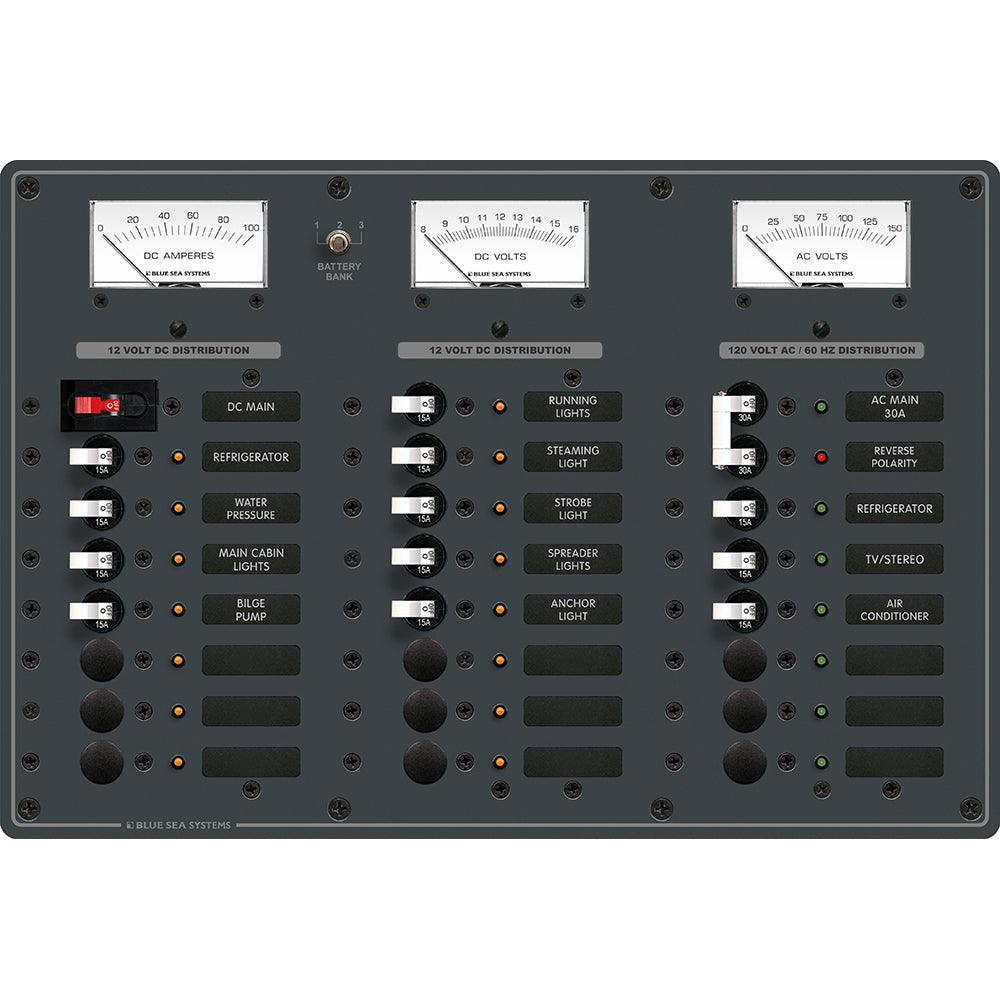

Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches [8084]
Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches [8084] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Please follow the manufacturer’s care recommendations as provided in the product manual.
Delivery and Shipping
Delivery and Shipping
All orders placed by 4pm EST will ship the same day as long as everything requested is currently in stock.
Shipping would be either via UPS, Canada Post or USPS.
All orders outside the United States may incur Custom charges of your country.
8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC
AC Features:
- Red reverse polarity indicating LED
- Ready for installation of optional 4029 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications:
- AC Positions: Main +6
- DC Positions: Main +15
- 120 Volts AC
- 12 Volts DC
- (1) 30A - (3) 15A AC Circuit Breakers
- (1) 100A - (9) 15A DC Circuit Breakers
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 6 AC / 15 DC
- AC/DC: Both
- Voltage: 120v/12v
- Box Dimensions: 7"H x 15"W x 23"L WT: 8.6 lbs
- UPC: 632085080846
Owner's Manual (pdf)
